APFC Panels

INDUSTRIAL AUTOMATION & PANELS

APFC Panel Manufacturer and Supplier

Vedant Electrical & Services offers APFC (Automatic Power Factor Correction) panels for industrial and commercial electrical systems. Our APFC panels are designed to automatically control capacitor stages according to the power factor and changing electrical load. As an APFC panel manufacturer and supplier in Navi Mumbai, Mumbai, and across India, we provide panel solutions configured according to the application and electrical requirements.

Enquire Now

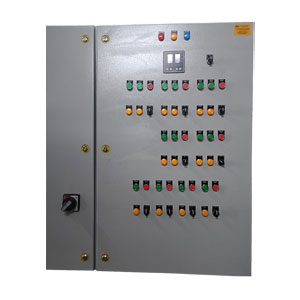

APFC Panel Manufacturing by Vedant Electrical & Services

What Is an APFC Panel?

An APFC panel is an electrical panel used for automatic power factor correction. It uses a power factor controller and capacitor banks to compensate for reactive power in an electrical system.

In facilities where the electrical load changes frequently, the required reactive power compensation also changes. An APFC panel automatically switches the required capacitor stages according to the load conditions, helping maintain a more consistent power factor.

How Does an APFC Panel Work?

An APFC panel continuously monitors the power factor of the electrical system. Based on the measured requirement, the controller switches individual capacitor stages ON or OFF.

APFC Panel Working Process

  1. 1 The controller monitors the electrical load and power factor.
  2. 2 It identifies the required reactive power compensation.
  3. 3 The appropriate capacitor stage is switched into the circuit.
  4. 4 When the compensation requirement changes, capacitor stages are switched accordingly.
  5. 5 The process continues automatically as the electrical load changes.

This automatic operation makes APFC panels suitable for installations where the electrical load is not constant.

Key Components of an APFC Panel

Depending on the required configuration, an APFC panel can include components such as:

The selection and configuration of components depend on the connected load, required compensation, installation conditions, and customer requirements.

APFC Panel Specifications

APFC panel specifications can be configured according to the electrical requirements of the installation. The following parameters can be considered during panel design:

Specification Details
Product TypeAutomatic Power Factor Correction Panel
ApplicationIndustrial and commercial electrical systems
Supply Voltage440 VAC*
PhaseThree Phase
MountingFloor / Wall
Surface FinishPowder Coated
Panel SizeAs per requirement
Panel WidthAs per requirement
Capacitor CapacityAs per required power factor correction
Number of Capacitor StepsAs per application requirement
ControlAutomatic
CustomizationAvailable as per project requirements

Final electrical and construction specifications should be confirmed according to the project requirements and approved panel design.

Applications of APFC Panels

APFC panels are commonly used where maintaining power factor is important and electrical loads vary during operation.

Typical applications include:

For industrial installations in Mumbai, Navi Mumbai, and other parts of India, the APFC panel configuration can be selected according to the site's electrical load and operating requirements.

Benefits of APFC Panels

Using an appropriately designed APFC panel can provide several operational benefits:

  • Automatic power factor correction
  • Automatic switching of capacitor stages
  • Better management of reactive power
  • Consistent power factor under varying loads
  • Reduced requirement for manual capacitor switching
  • Helps avoid power-factor-related penalties where applicable
  • Suitable for electrical systems with changing loads

The actual benefits depend on the existing electrical system, load profile, power factor, and correct sizing of the APFC panel.

APFC Panel Configuration

The configuration of an APFC panel should be selected according to the electrical requirements of the installation. Important factors include:

  • Connected electrical load
  • Required power factor correction
  • Capacitor bank capacity
  • Number of capacitor steps
  • Incoming supply parameters
  • Installation requirements
  • Available panel space
We can design the panel configuration according to the requirements provided for the project rather than using the same configuration for every installation.

Customized APFC Panels

Every electrical installation has different load characteristics and panel requirements. We provide customized APFC panel solutions based on the customer's application and required specifications.

Our in-house design capability allows us to develop panel designs according to the required configuration, component arrangement, panel size, and electrical requirements. This approach helps us supply APFC panels for different industrial and commercial applications.

Why Choose Vedant Electrical & Services?

We focus on providing practical panel solutions based on the customer's electrical requirements.

Established in 2013
In-house panel design capability
Customized panel solutions
Manufacturing and supply of electrical panels
Quality-focused manufacturing process
Experienced technical team
Capability to cater to bulk requirements
Based in Navi Mumbai, Maharashtra

Frequently Asked Questions

Get answers to common queries about APFC panels, their working, and selection.

An APFC panel is an automatic power factor correction panel that uses capacitor stages to compensate for reactive power and help maintain the required power factor.

An APFC controller monitors the power factor and automatically switches capacitor stages according to the compensation required by the electrical load.

APFC panels are used in industrial plants, manufacturing units, commercial facilities, workshops, and other installations where power factor correction is required.

Yes. APFC panels can be configured according to the electrical load, required compensation, number of capacitor steps, installation conditions, and other project requirements.

A capacitor panel uses capacitor banks for power factor correction, while an APFC panel automatically controls the capacitor stages according to the changing power factor and load requirements.

The appropriate APFC panel should be selected based on factors such as connected load, existing power factor, required compensation, number of stages, and site conditions. A proper assessment of the electrical system helps determine the suitable configuration.
